Not Quite A GT – Ligier Cosworth JS2 #2379 72 03

Leave a Reply

In 1970 former international rugby player and construction magnate Guy Ligier set about founding a sports car manufacturing company bearing his own name.

The original production model was to be the JS2 with a chassis designed by Michel Tetu, who would later be part of the Renault Le Mans and Formula One campaigns and a body designed by Pietro Frua.

The JS2 was originally intended to be powered by a 2.6 litre / 158 cui Ford Cologne V6 but that had to be changed to the 3 litre / 183 cui Maserati V6 as used in the Merak and Citroën SM, when Ford thought it might build a rival in the form of the Ford GT70.

Ligier JS2, Goodwood, Festival of Speed,

Production of the JS2 never reached sufficient numbers for the sporting authorities to consider the car for GT racing so instead racing versions were run as prototypes.

The racing JS2’s were built with aluminium chassis and raced with Maserati V6 engines which proved a tad underpowered and unreliable, although the teams perseverance was rewarded with a victory in the 1974 Le Mans 4 hour race for Guy Chasseuil and in the 1974 Tour de France Automobile where Gérard Larrousse, Jean-Pierre Nicolas and Johnny Rives drove the winning JS2.

A second place finish for today’s featured chassis #2379 72 03 driven by Bernard Darniche and Jacques Jaubert emphasised the team’s mastery of the 1974 mixed discipline event.

Ligier JS2, Goodwood, Festival of Speed,

With new sponsorship from Gitanes for 1975 Ligier exploited the Prototype regulations more fully by producing a silhouette JS2 body and fitting more powerful Ford Cosworth DFV motors to two of his three JS2 racing cars including today’s featured chassis.

The two DFV powered JS2s were sent to Mugello and Dijon netting a 7th for Jean-Pierre Beltoise and Jean-Pierre Jarier at the former and 6th for François Migault and Jean-Pierre Jarier at the latter.

Perhaps mindful of wanting to preserve their machinery for Le Mans only single car entries were sent to Monza and Spa where Beltoise and Jarrier finished 21st from 7th on the grid and François Migault and Jean-Louis Lafosse finished 12th from 5th on the grid respectively.

Ligier JS2, Goodwood, Festival of Speed,

At Le Mans the two DFV powered JS2’s were joined by a third Maserati powered JS2 the latter to be driven by Beltoise and Jarier.

Unsurprisingly the Maserati was slowest of the three starting from 9th it was also the first of the three to retire after an accident.

Today’s featured car driven by Henri Pescarolo and François Migault qualified 5th but retired later in the race with a puncture.

The second DFV powered JS2 driven by Jean-Louis Lafosse and Guy Chasseuil qualified an impressive 3rd and survived to finish second only one lap down behind the Gulf GR8 shared by Derek Bell and Jacky Ickx.

After Le Mans 1975 Ligier retired from sports car racing in preparation for it Gitanes sponsored appearance in Formula One the following season.

Thanks for joining me on this “Not Quite A GT” edition of “Gettin’ a li’l psycho on tyres” I hope you will join me again tomorrow when I’ll be paying a visit to the National Motor Museum at Beaulieu. Don’t forget to come back now !

Share

Traffic Yellow Customer Racer – McLaren Chevrolet M8 C

Leave a Reply

The 1969 season saw the Canadian American Challenge expand to an eleven race series, the most run in any year of the challenge, but only the McLaren Cars Team cars with New Zealanders Bruce McLaren and Denny Hulme recorded wins. Bruce won six of the races driving his McLaren M8B and with Denny recording the remaining five.

McLaren M8C/D, Race Retro

For 1970 McLaren Cars updated the M8B to a design known as the M8D while offering a production version of the M8B built by Trojan known as the M8C, of the type featured today. Confusingly Trojan also built 15 McLaren M12’s featuring updated M6 chassis running with M8 size wheels and adapted M8 bodywork in 1969. The most successful exponent of the customer M8C in the 1970 Can Am Challenge was Canadian Roger McCaig who recorded 3 5th place finishes and an eventual 10th place in the 1970 Challenge standings.

Lothar Motschenbacher who drove one of the 1969 Mclaren M8B’s, a 1969 McLaren M12 and an M8C during the 1970 Can Am Challenge recorded one 5th place in his M8C at the last race of the season to finish a distant 2nd in the 1970 Can Am Challenge, to Denny Hulme who won 6 of the ten 1970 Can Am races in his M8D to secure his second Can Am Championship.

McLaren M8C/D, Race Retro

According to the Bruce McLaren Trust website Trojan built 15 M8C’s which were also raced in Europe and South American series. The Ford Cosworth DFV powered M8C driven by Chris Craft won the 1970 Swedish Grand Prix run for sports cars including a couple of Porsche 917K’s.

The most successful McLaren M8C appears to have been chassis #70-08 which was driven to three victories in Argentina by; Nasif Estéfano at Buenos Aeries in April 1971, Carlos Pairetti at Buenos Aeries in August 1971 and Osvaldo López at San Martin in March 1973. The car was listed on each occasion as being powered by a Ford motor.

McLaren M8C/D, Race Retro

The only other in period victory recorded for an M8C is the Chevrolet example driven by Siegfried Rieger at Hockenheim in November 1971, his car featured an M12 chassis with M8C bodywork.

The last ‘in period’ race recorded for any M8C, thought to be for today’s featured car M8C #30-25, was driven by Richard Dotkins at an Interserie event run at Zolder in August 1992, where the car finished 6th in Heat 2. Since then #30-25, which would never have run in the works McLaren Traffic Yellow colour scheme as seen here, is thought to have recorded at least 5 race victories in sundry (primarily classic/historic) events through the 1990’s; 2 by Richard Dotkins, 2 by Richard Eyre and 1 by Geoff Farmer.

McLaren M8C/D, Race Retro

The #30 series chassis number of the car would more normally be associated with a space/tube frame Trojan built McLaren M1B. The history of McLaren M1B #30-25 is, like the history of M8C/D #30-25 prior to 1992, also unknown at the time of writing.

The car featured to day was seen at Race Retro and is raced by Harry Reed.

My thanks to raceanouncer2003, Belmondo, David McKinney and Duncan Fox at The Nostalgia Forum for their help in identifying today’s car and it’s history.

Thanks for joining me on this “Traffic Light Yellow Customer Racer” edition of “Gettin’ a li’l psycho on tyres” I hope you will join me again tomorrow when I’ll be looking at a Can Am BRM. Don’t forget to come back now !

Share

6 Wheel 4WD Final Call – Williams FW08B

Leave a Reply

Going into the 1982 season Williams had won not only a drivers Championship with Alan Jones in 1980, but two consecutive constructors Championships on which the team openly has always prided it’s self on more than any drivers championship.

At the end of 1981 Williams designer Patrick Head and aerodynamicist Frank Dernie revisited the idea of running a six wheel formula one car with four driven wheels as Robin Herd at March had done during the winter of 1976/77 with the March 2-4-0.

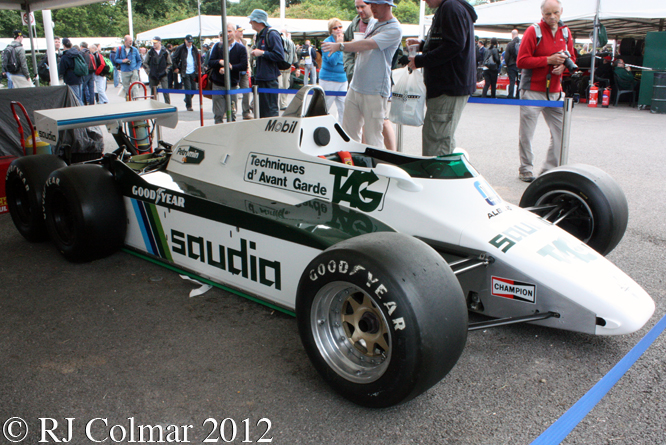

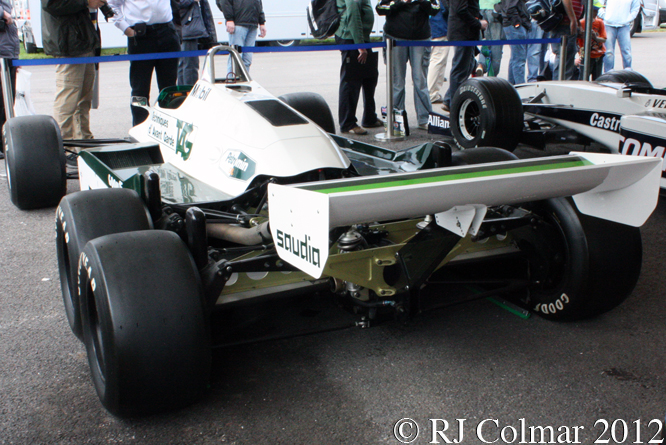

Williams, Cosworth, FW08B, Goodwood Festival of Speed

Unlike March the Williams team were not interested in the publicity from the concept but, already having sufficient financial backing to see the concept through, they were interested in the results and specifically a third consecutive constructors championship which the concept might be able to deliver.

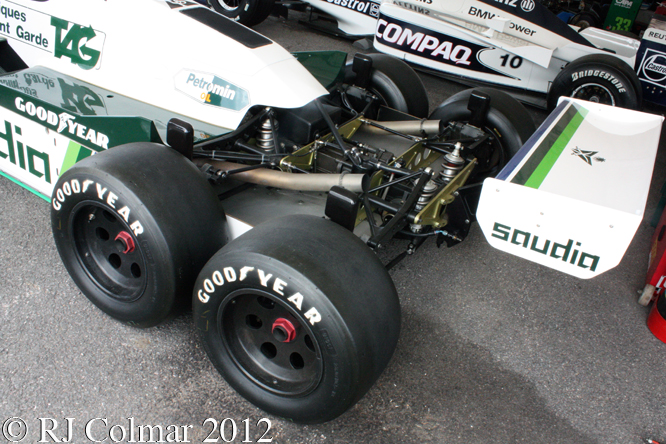

Williams, Cosworth, FW08B, Goodwood Festival of Speed

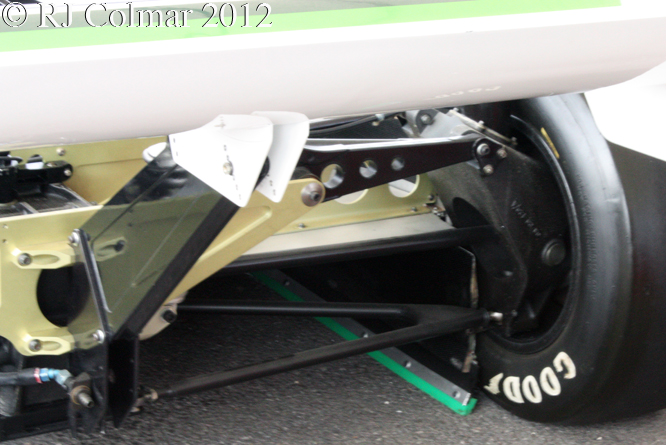

The rear 4 wheel drive transmission was tried out first on a 1981 FW07C chassis #FW07C/11 which became D spec with the additional driving wheels. Alan Jones tested the car before heading off into ‘temporary’ retirement in Australia.

Williams, Cosworth, FW08B, Goodwood Festival of Speed

With Jones team mate Carlos Reutemann also considering retirement after blowing an opportunity to win the 1981 World Drivers Championship at the last race in 1981, Fittipaldi refugee, Keke Rosberg was taken on to test both the FW07D, the new two wheel drive FW08 and four wheel drive FW08B as seen in these photographs.

Williams, Cosworth, FW08B, Goodwood Festival of Speed

In January 1982 it was reported in Motor Sport that “Patrick Head is pressing on with his experimental six wheeled Williams….”, by February 1982 Motor Sport reported that “Williams will not be racing the six wheeler…” without any further reasons being given leading one to conclude the 4 wheel 2 wheel drive FW08 had proved sufficiently superior not to proceed with the FW08B.

Although Patrick Head has said that at a meeting of the Formula One teams others were horrified at the increased expense of the system and prospect of the chaos that would ensue during pitstops. The FIA eventually also put a restriction on the number of wheels for a Formula One car limited to just 4 of which 2 maybe driven.

Despite being reliant on the venerable, but reasonably reliable Cosworth DFV motor when all around them the turbo charged motors were showing ever more horsepower Keke Rosberg managed to win the 1982 drivers championship with the FW08, winning just one race in the sixteen race series but scoring enough points from his remaining placings to beat his turbocharged competitors.

The constructors championship was won by Ferrari and had not Gilles Villeneuve been killed and Didier Pironi injured during the season a Ferrari driver might well have won the 1982 championship.

Thanks for joining me on this “6 Wheel 4WD Final Call” edition of “Gettin’ a li’l psycho on tyres”, I hope you will join me again tomorrow. Don’t forget to come back now.

Share

French Built Championship Winner – MATRA Ford MS80 #MS80/3

4 Replies

For 1969 MATRA CEO Jean-Luc Lagardère took a gamble to try and win the 1969 Drivers and Manufacturers Championships by suspending the entry of MATRA V12 powered cars by the works MATRA team and putting all of the teams efforts behind Ken Tyrrells Ford DFV powered MATRA International team cars.

MATRA MS80, Silverstone Classic, Press Day

Even with all the focus being on the MATRA International Team cars the 1969 MS80 was not ready for the start of the season, fortunately the old Ford Powered MATRA MS10 was still good enough for Jackie Stewart to win the championship opening South African Grand Prix.

MATRA MS80, Silverstone Classic, Press Day

The MS80 made it’s public debut at the non Championship Race of Champions from the Lotus 49 of Graham Hill. At the Spanish Grand prix run around the streets of Barcelona at Montjuich Park Stewart won again starting from starting from forth on the grid after the faster Lotus 49’s of Rindt and Hill retired at the same spot a few laps apart as a result of crashes caused by wing failures, and Chris Amon who lead Stewart by over 30 seconds retired with a seized motor after half distance.

Maydon, MATRA MS80, Silverstone Classic, Press Day

At Monaco Stewart retired but then went on to win in Holland, France, backed up by team mate Jean Pierre Beltoise who finished second and Great Britain. In the German Grand Prix Stewart finished second to Jacky Ickx driving a Brabham before winning the Itallian Grand Prix at Monza.

MATRA MS80, Silverstone Classic, Press Day

Stewart retired from both the Canadian and US Grand Prix by which time Ickx who won in Canada was too far back in the points standings to catch the Scot. Stewart finished 4th in Mexico to round out the season in which he won his first drivers Championship and MATRA International their only World Manufacturers title.

Maydon, MATRA MS80, Test Day, Mallory Park

Only two MS80’s were completed for the 1969 season, a Ford Cosworth all wheel drive MS84 was also built but this featured MS80 suspension and a unique space frame chassis and was used originally as a spare car to replace the older MATRA MS10’s.

MATRA MS80, Silverstone Classic, Press Day

It is a credit to the determination of MATRA CEO Jean-Luc Lagardère to win both drivers and manufacturers championships that he sanctioned the building of the MS80 which featured fuel tanks that were integral to the monocoque that was reinforced inside by a number of transverse bulkheads, effectively splitting the fuel tank in many small interconnected cells.

Maydon, MATRA MS80, Silverstone Classic, Press Day

It had been announced well before 1969 that for 1970 rubber bag fuel tanks would be mandated that precluded the use of many interconnected fuel cells, so effectively the MS80 was restricted to being a one season challenger at the end of which it was outlawed.

MATRA MS80, Silverstone Classic, Press Day

At the end of 1969 Stewart and Tyrrell decided that they wanted to use the Ford Cosworth DFV in 1970 and MATRA who had been taken over by French manufacturer Simca, a French Chrysler subsidiary, were adamant they wanted to return to V12 power for 1970. To date the MATRA MS80 remains the only car built in France to win the World manufacturers championship. Note: the Renault’s driven by Fernando Aonso to Drivers and Manufacturers Championship success in 2005 and 2006 were built in Enstone, UK in the same premises that are now home to the Lotus F1 Team.

Chassis #MS80/3 seen in today’s photographs was built up from an unused spare tub for owner/driver Ray Maydon, who is seen driving the car at a Silverstone Classic test day top and bottom and at a Mallory Park test day in the middle.

My thanks to Walter Melissen of the The Nostalgia Forum and Ultimatecarpage.com for his assistance in identifying the chassis number and owner driver of today’s featured model.

Thanks for joining me on this “French Built Championship Winner” edition of “Gettin’ a li’l psycho on tyres” I hope you will join me again tomorrow. Don’t forget to come back now !

Share

More Fuel – McLaren Ford M14A #M14/2

1 Reply

Going into 1970 things were looking up as McLaren Cars entered their seventh year. The team had won three consecutive Can Am Championships, 2 for Bruce McLaren and one for Denny Hulme, the inaugural European Formula F5000 championship with Peter Gethin and four championship Formula One races one for Bruce McLaren and three, including the last race of 1969, for Denny Hulme.

In addition to these racing programs for 1970 McLaren were to embark on an Indy program with the new turbocharged McLaren Offy M15 and were contracted to run an Alfa Romeo V8 powered car alongside their new Ford powered M14A Formula One car.

McLaren Ford M14A, Goodwood Revival

The new M14A was an improvement of the 1969 McLaren M7C, itself based on a Formula F5000 M10A chassis with McLaren M7A Grand Prix winning suspension.

The main feature of the new car was the narrower internal dimensions of the monocoque which were necessary to accommodate larger fuel tanks required by the ever more powerful and thirsty Ford Cosworth DFV V8’s.

McLaren Ford M14A, McLaren Manchester, Knutsford

The McLaren M14A was used in all but one race in the 1970 Formula One championship season. It’s best result was on it’s debut in South Africa where Denny Hulme finished second, driving I believe today’s featured car. Bruce McLaren matched that in Spain where he also finished second. After the Monaco Grand Prix where Denny finished forth disaster struck as first Denny was badly burned after his car caught fire in testing at Indianapolis and then a couple of weeks later Bruce was killed while testing the M8D Can Am car at Goodwood.

The team consequently missed the Belgian GP and reappeared at the Dutch Grand Prix with Dan Gurney driving the lead car #M14/1 and 1969 European Formula 5000 champion Peter Gethin making his Formula One championship debut driving today’s featured chassis, both cars retired. Denny Hulme still suffering from burned hands was back in time for the French Grand Prix alongside Dan Gurney and the pair came in 4th and 6th respectively.

#M14/2 is seen at the McLaren Manchester show room in Knutsford above.

McLaren Ford M14A, Goodwood Festival Of Speed

Dan Gurney retired from Formula One after retiring from the British Grand Prix where Hulme finished a remarkable 3rd. Peter Gethin was back in the team for the German Grand Prix where Denny again finished 3rd. Denny retired from the Austrian GP but at Monza for the Italian Grand Prix he came home 4th. Peter Gethin scored his first World Championship point at the Canadian Grand Prix where he finished 6th and Denny rounded out a painful year with a third in the Mexican Grand Prix finishing 4th in the Formula One Championship points table.

Incredibly despite his injuries Denny had also won 6 of the 10 Can Am Championship rounds enough to win the 1970 Chamionship his second Can Am Crown and McLaren Cars 4th consecutive championship aided by a further win from Peter Gethin who also won a second consecutive European Formula 5000 title driving a McLaren. The US, New Zealand and South African Formula 5000 thousand championships were won by John Cannon, Graham McRae and Bob Olthof respectively all also driving McLarens.

McLaren Ford M14A, Goodwood Festival Of Speed

For 1971 #M14/2 was driven by Peter Gethin to two second place finishes in non championship races at Oulton Park and Brands Hatch, the best championship result Peter had from 3 championship start in the car was 8th in the 1971 Spanish Grand Prix.

Jackie Oliver joined McLaren for the British Grand Prix where he qualified #M14/2 22nd but a bungled flag drop saw Jackie crash into Graham Hill at the start causing instant retirement for both and a £50 fine for Jackie. The cars final works appearance was at the 1971 Italian Grand Prix where Jackie qualified 13th and finished 7th in a close fought race won by Peter Gethin now driving a BRM.

McLaren Ford M14A, Goodwood Festival Of Speed

#M14/2 next appeared with a Formula 5000 Chevy stock block V8 motor in the hands of Tony Dean who’s best result was a 10th place finish in his first start in the car at Mondello Park. On his seventh and final attempt, which included retirements from races at Elkhart Lake and Brainerd, to race the car Tony failed to qualify for the non championship 1972 John Player Challenge Trophy at Brands Hatch.

In 1973 at the same venue Willie Wood failed to qualify #M14/2 for the Formula F5000 race or non championship Race of Champions and was not classified in a further appearance at Oulton Park. Allan Kayes then bought #M14/2 was also unclassified at Brands Hatch, finished 11th at Oulton Park and then retired, failed to qualify or failed to start in 12 further races most of which were rounds of the 1974 European Formula 5000 championship.

Thanks for joining me on this “More Fuel” edition of “Gettin’ a li’l psycho on tyres” I hope you will join me again tomorrow. Don’t forget to come back now !

Share

Magnesium DFV – Cosworth

1 Reply

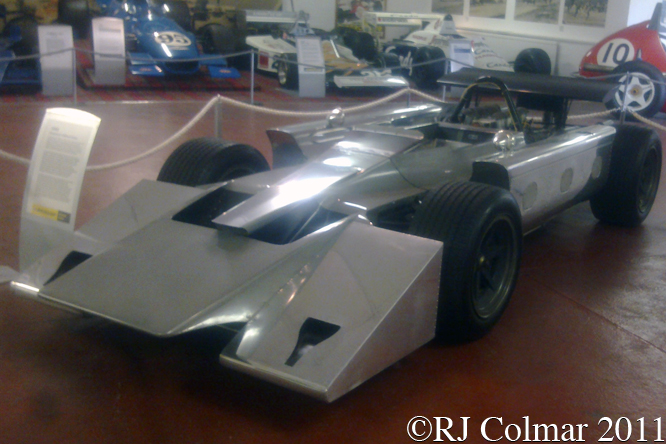

Looking like a cross between a 1923 Grand Prix Voisin Labatoire and a 1954 Lancia D50 the Cosworth Formula Car designed by Robin Herd.

Cosworth, Donington, Park Museum

Mike Costin and Keith Duckworth, the geniuses behind the Ford Cosworth DFV Formula One engine that dominated Formula One from 1968 to 1982, decided to engage former McLaren designer Robin Herd build a car which would maximise the advantages of their powerful DFV V8 in 1968.

Cosworth, Donington, Park Museum

Herd took a more radical approach to the application of all wheel drive to Formula One than either Colin Chapman’s Lotus 63 or Jo Marquart’s McLaren M9A, although no where near as radical as the V12 powered MATRA MS 11 all wheel drive with hydraulic drive to all four wheels.

Cosworth, Donington, Park Museum

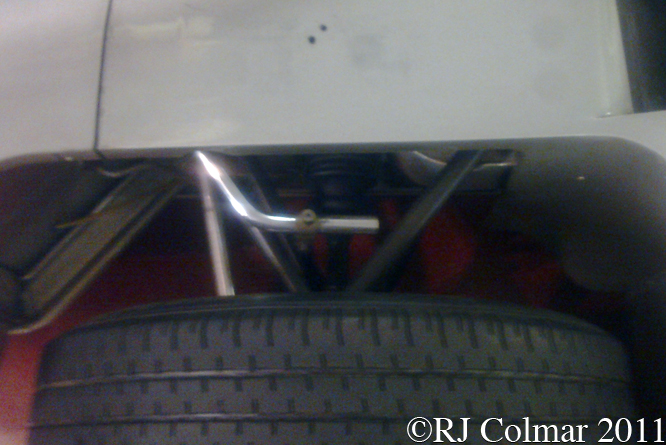

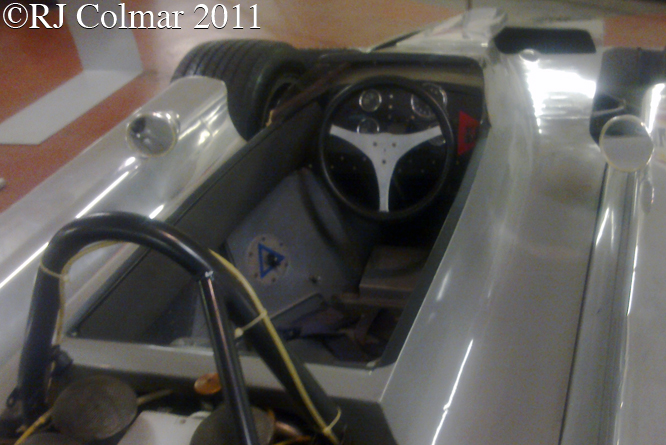

In order to keep the driver’s seat low and accommodate the drive shaft running from the motor and gearbox in the rear to the wheels at the front the driver was slightly offset from a central seating position.

Cosworth, Donington, Park Museum

The Cosworth was tested by Mike Costin, the ‘Cos’ in ‘Cosworth’, Brian Redman, Trevor Taylor and Jackie Stewart.

Cosworth, Donington, Park Museum

Trevor Taylor was penciled in to debut the Cosworth at the 1969 British Grand Prix, however as the testing had shown the car worked best with little or no drive to the front wheels the entry was withdrawn.

Cosworth, Donington, Park Museum

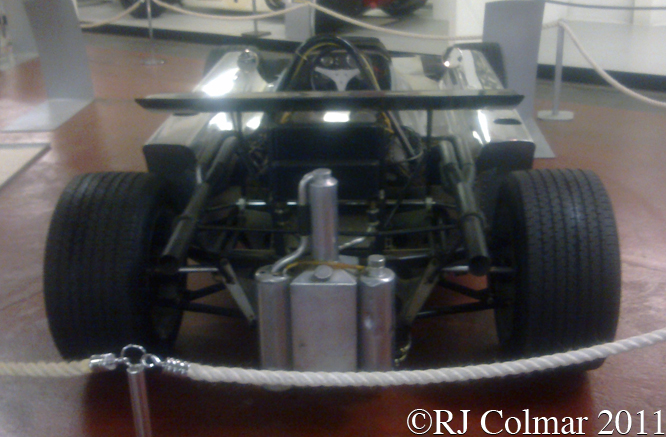

While the Cosworth shared the same 3 lite / 183 cui DFV motor design there was one essential difference between the Cosworth works unit and those supplied to Lotus and McLaren, the block was cast in magnesium to save weight over the aluminium cast DFVs supplied to Cosworth’s customers.

Cosworth, Donington, Park Museum

The Cosworth never did race, as BRM’s Tony Rudd had predicted after BRM’s experience with the all wheel drive BRM P67 all wheel drive would never work in Formula One, and after being demonstrated at the British Grand Prix at Brands Hatch in 1970 it found it’s way to the Donington Park Museum where it is seen in these photographs.

Thanks for joining me on this “Magnesium DFV” edition of “Gettin’ a li’l psycho on tyres”, I hope you will join me again tomorrow. Don’t forget to come back now !

Share

Primer Car – MATRA Ford MS9

1 Reply

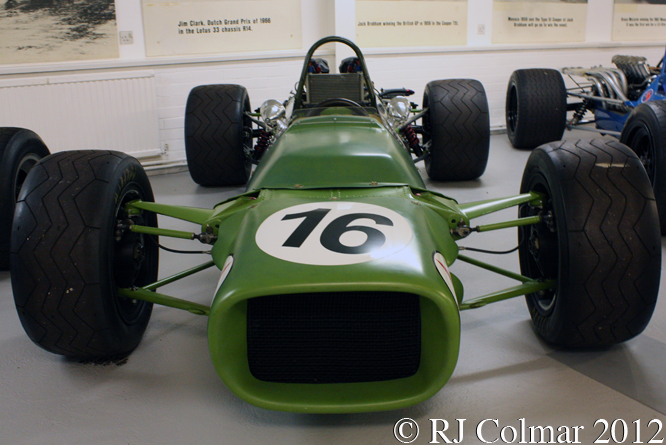

For 1968 Ken Tyrrell joined McLaren and Lotus by electing to buy a supply of Ford Cosworth DFV engines and did a deal with MATRA, who’s chassis he had run in Formula 2, to supply Formula One chassis for Jackie Stewart. While finishing the new MS10 challenger MATRA built the MS9 as an interim development car featuring a shortened MS7 Formula 2 monocoque which was adapted to take the DFV as a stressed member.

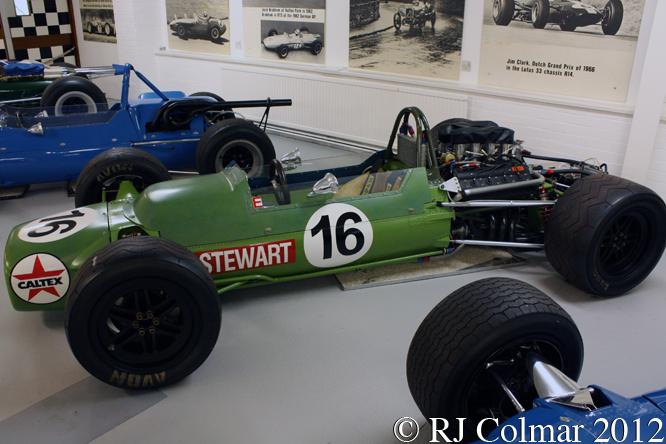

MATRA MS9, Donington Museum

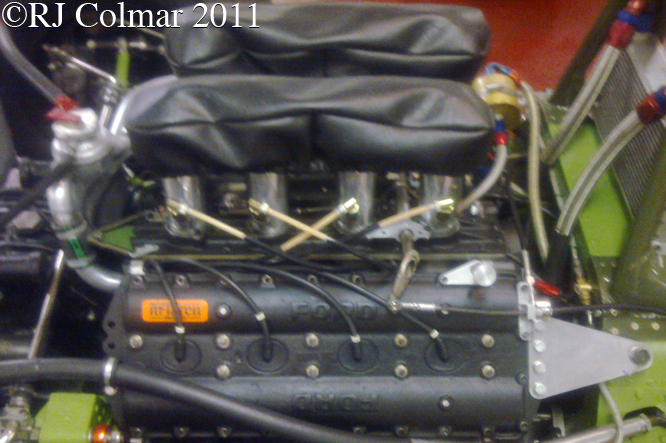

The interim car was fitted with suspension adapted from it’s sports car programme to acommodate the larger Formula One wheels. The car was painted in a zinc or other chromate pigmented primer usually found in the aerospace business, MATRA’s prime business, to protect aluminium alloy.

MATRA MS9, Donington Museum

Jackie liked the car in testing and elected to race the primer test car in the 1968 South African Grand Prix in favour of the new MS10. Apparently a late attempt was made to paint the car French blue but the paint chosen did not adhere to the primer.

MATRA MS9, Donington Museum

Finance for the new MATRA International Team was provided by a new natianalised French oil brand Elf, which took over a large number of French Caltex retail outlets in 1968 that were subject to a carefully orchestrated overnight nationwide rebranding program.

MATRA MS9, Donington Museum

Having qualified an impressive third with only the Lotus 49’s of Jim Clark and Graham Hill ahead of him, Jackie Stewart stepped into the MS9 to start the race knowing he did not have enough fuel on board to complete the race without a pit stop.

MATRA MS9, Donington Museum

However on lap 43 the car had to retire with a broken valve spring and dropped valve.

MATRA MS9, Donington Museum

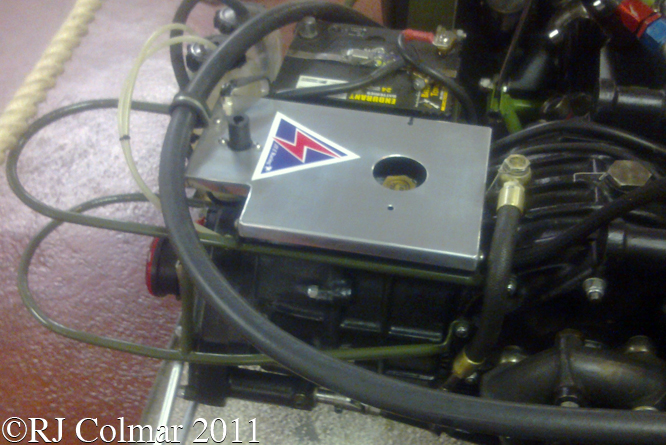

This car was then replaced by the MS10 for the remainder of the season. Note the curved grey bar is part of a subframe that links the rear suspension and gearbox directly to the chassis which kept the rear suspension and gearbox in place when the engine was removed.

Thanks for joining me on this primer car edition of “Gettin’ a li’l psycho on tyres” I hope you will join me again tomorrow. Don’t forget to come back now !
